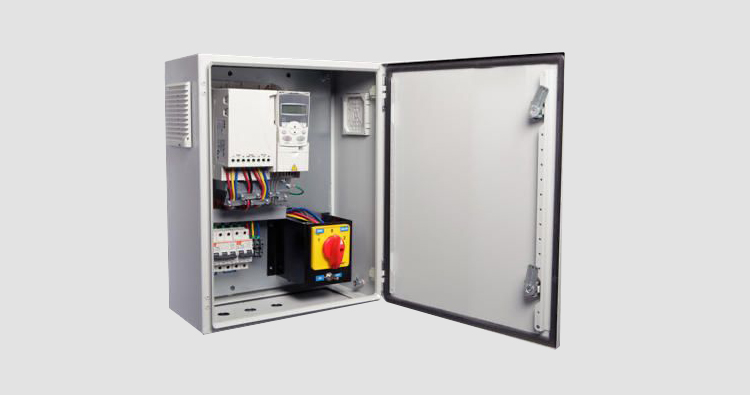

Our Solar Pump Controller is a high-efficiency solar water pump controller which can make full use of solar energy. The MPPT system works at its best and providing the most energy efficient operation of the pump and rich protection functions ensure the smooth and safe operation. In short, it gives an excellent sense of balance of easy operation, installation, advanced pump control capacity.
| AC Input | |
| Input voltage (Vac) | 380V (-15%) ~ 440(+10%) |
| Input frequency (Hz) | 47~63 |
| AC Output | |
| Output voltage (Vac) | 0 – input voltage |
| Output frequency (Hz) | 0-400 |
| DC Input | |
| Start voltage (V) | 300 |
| Max DC voltage (V) | 800 |
| Min work voltage (V) | 250 |
| Recommended MPPT Voltage (V) | 300-750 |
| Recommended input work Voltage (V) | 550 |
| Others | |
| Protective degree | IP 42 / IP43/ IP51/ IP53/ IP54/ IP55/ IP65/ IP66 |
| Cooling method | Forced air cooling |
| Interface | LED Keypad |
| Professional function | |
| Protection function | Under load or phase loss protection |
| MPPT function | Automatic factory setting |
| Auto run / stop | Sleep when the light is weak & wake up when the light is strong |
| Water level monitor | Sleep when the water is full and wake up when the water level is low |
| Overload capability | |
| 120% of rated current | 1 minute |
| 150% of rated current | 10 seconds |
| HP | Kw | Rated Input current (A) | Rated output current (A) | Max. DC input current (A) |
| 3.0 | 2.2 | 5.8 | 5.5 | 12 |
| 5.0 | 4.0 | 13.5 | 9.5 | 16.5 |
| 7.5 | 5.5 | 19.5 | 14 | 23.9 |
| 10 | 7.5 | 25 | 18.5 | 30.6 |
| 15 | 11 | 32 | 25 | 39.2 |
| 22 | 15 | 40 | 32 | 49 |
| 25 | 18.5 | 47 | 38 | 50 |
| 30 | 22 | 51 | 45 | 60 |
| 40 | 30 | 70 | 60 | 81 |
| 50 | 37 | 80 | 75 | 90 |
| 60 | 45 | 98 | 92 | 130 |
